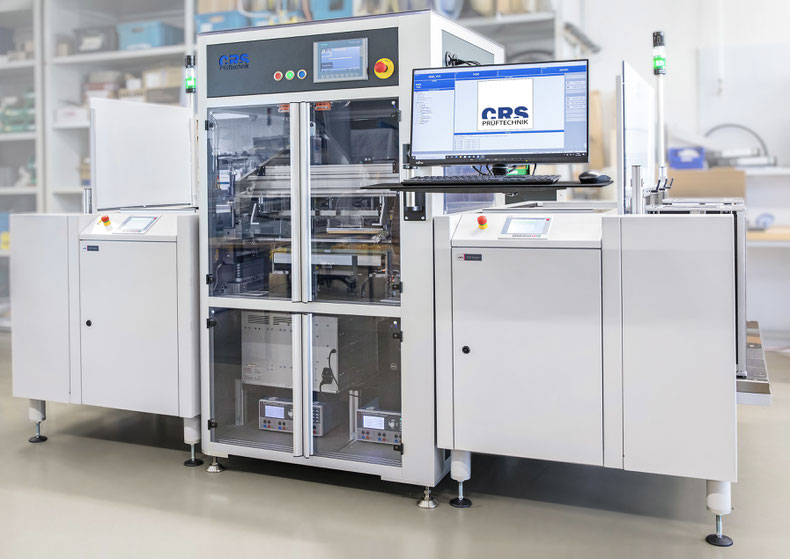

INLINE Testhandler   IPS-19

The CRS testhandler IPS19-2 is designed for rack and stack test systems with 19 inch components.

The design of the machine allows the total integration of the test hardware. Alternatively, test racks can be placed behind the station.

• Servo driven test fixture
• Double sided probing
• Dual stage fixtures
• Integrated test interface with automated locking
• Spring loaded interface probes
• SMEMA standard
• Serial interface to the test hardware
• Integrated barcode reader (additional conyeyor module)
• Operator panel

Communication between test system and testhandler is via RS 232. Integration of the MES via OPC-UA is also possible. Both components have an ideal connection due to the serial interface, which assures an easy and safe operation.

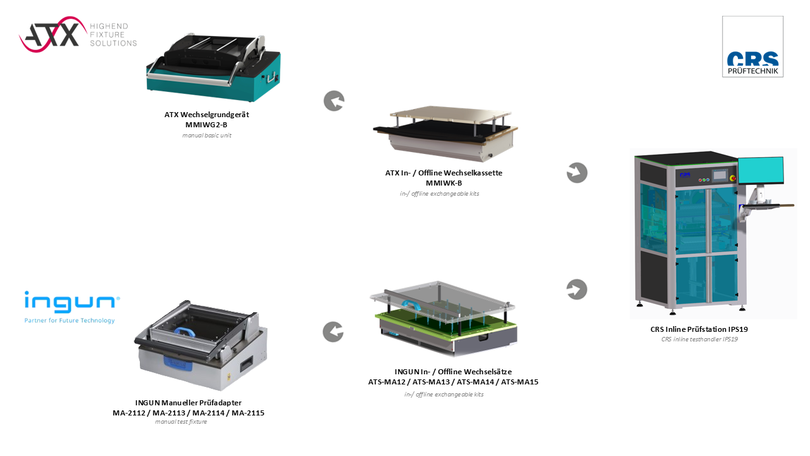

The IPS-19 can be designed to fit the customer's existing adapter concept. To do this, we use the latest offline/manual adapter change systems for electrical assemblies from Ingun and ATX, offering you a flexible solution for your test item.

A testing adapter for the entire product life cycle...

From circuit board product samples in the manual start-up phase to inline series production and product discontinuation. One testing adapter for all phases of your circuit board's life cycle, without additional follow-up costs for expensive inline adaptations.

New in 2025: ATX MMIWK-B goes inline!

The next variant of the inline/offline exchange systems is in the starting blocks. CRS Prüftechnik now offers you the option of using your ATX exchange adapters inline as well. The adapters can be used in the CRS inline testing station without an intermediate interface. The ATX changeover cassette MMIWK-B serves as the basis. With this solution, even small batch sizes can be efficiently integrated into automatic series production!

Ingun adapter concept in use worldwide

Since 2017, we have been offering our customers the option of using their INGUN interchangeable sets in our inline testhandlers. Over the years, we have developed a portfolio that now includes the interchangeable sets ATS MA12 / ATS- MA13 / ATS-MA14  and, most recently, the ATS-MA15. One test adapter for in-line and off-line use throughout the entire product life cycle – fast, cost-efficient and simple!
